Pressure bridge

Keep absolute control over the cutting pressure

Controlling the cutting pressure is essential in any die-cutting job: both for optimum quality and to keep cylinders and plates in good condition. The bridge distributes that pressure and holds the gauges that apply it.

01 It ensures the cutting pressure is applied evenly and consistently across the whole width.
02 On some presses it can be fitted with a pneumatic pressure system instead of manual adjustment.

Request information Download brochure

Render of the Tecnocut pressure bridge with two gauges mounted

Adjustable To every station

Manual or pneumatic Depending on the press

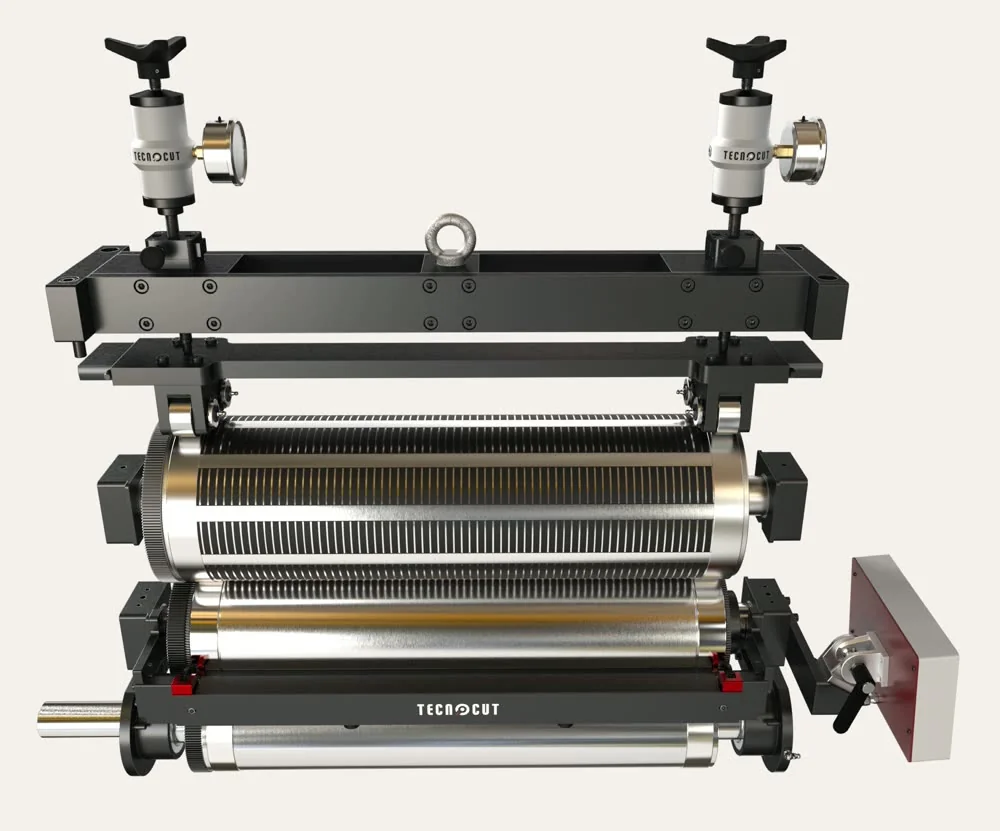

Pressure bridge mounted over the magnetic cylinder and the anvil of a die-cutting station

Where it’s mounted

On the station, above the tooling

The bridge is fitted to the die-cutting station and closes the assembly from above. The gauges mounted on it are what apply the pressure, and the bridge makes sure it reaches both ends of the cylinder equally.

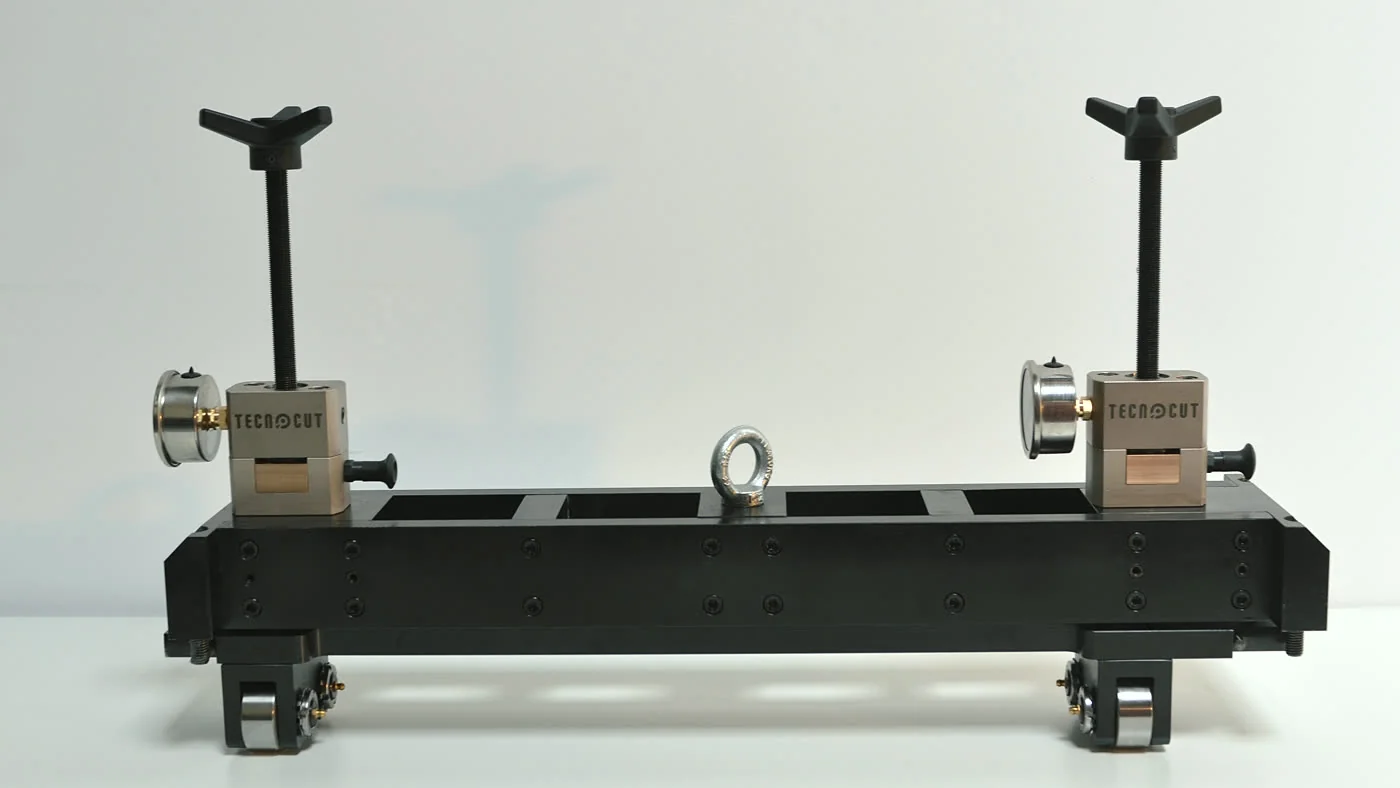

Tecnocut pressure bridge with the two gauges mounted — Pressure bridge with two gauges · designed and assembled in Barcelona

Advantages

Maximum precision in cutting pressure

Extreme precision

It keeps the cutting pressure stable at all times.

Easy positioning

It is fitted to the die-cutting station, and it is the gauges that apply the pressure.

Better production

With the right tools you will improve production and minimise errors.

Saves costs

Stable cutting pressure extends the service life of your cylinders and plates.

Keep exploring

The pressure control set

The bridge doesn’t work alone: it teams up with the gauges that apply the force and with the station it is mounted on.

Which station do you need to equip?

Tell us the make and model of your press and we will confirm the bridge size and the type of adjustment.
